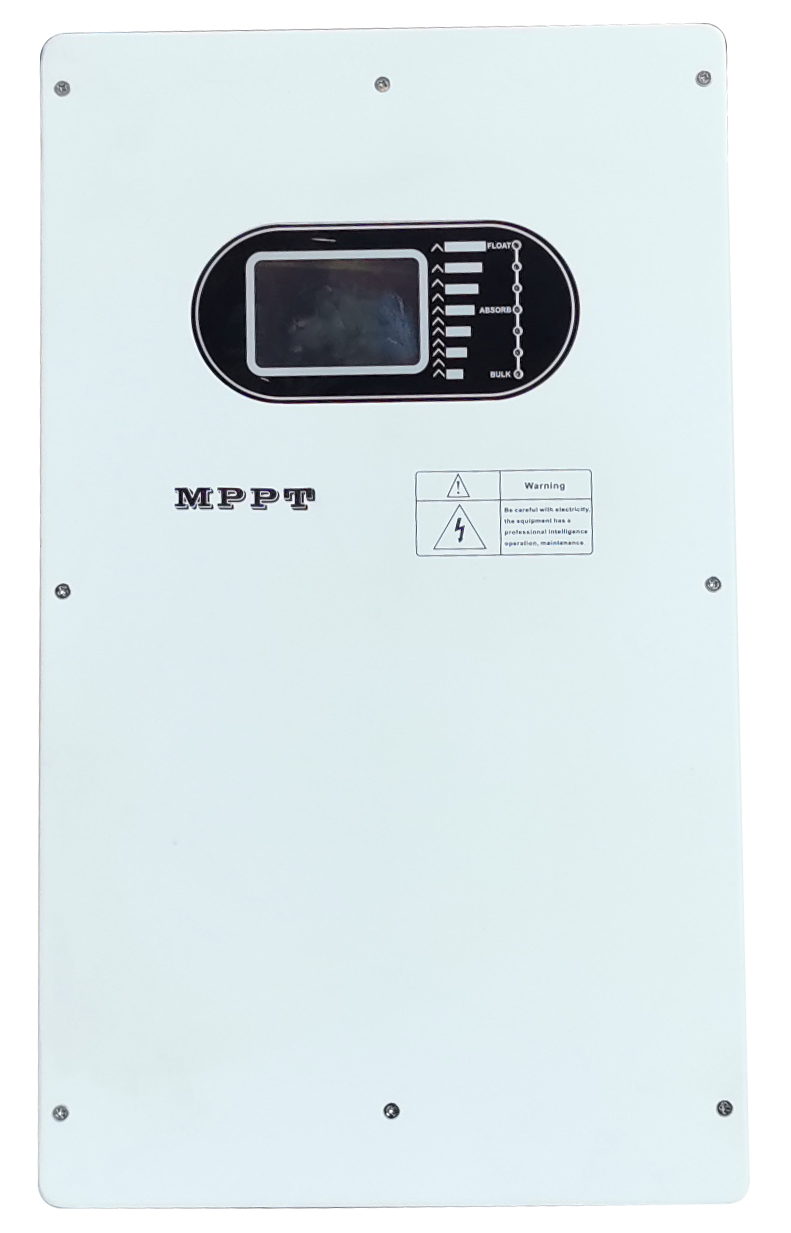

MPPT (IGBT)

Product Features

IP60 protection for PCB

Wide voltage range of PV input

Three-stage charging technology

Floating charge voltage settings

Lithium battery activation function

DSP control technology with high efficiency

Intelligent max power point tracking technology

Protection: Short circuit protection, Over-current protection, Anti-reverse connection for PV and batteries

Request A Quote

Product Applications

Product Spec

PDF Download

An MPPT, or maximum power point tracker is an electronic DC to DC converter that optimizes the match between the solar array (PV panels), and the battery bank or utility grid. To put it simply, they convert a higher voltage DC output from solar panels down to the lower voltage needed to charge batteries.

Installation sites

MPPT(IGBT) series wiring diagram.jpg

LED+LCD display
Battery volatge	48/96vdc
Charging current	150/180/200A
Max PV input	250Voc
Max efficiency	98%

MPPT(IGBT) series Specs.jpg

IGBT MPPT.pdf
