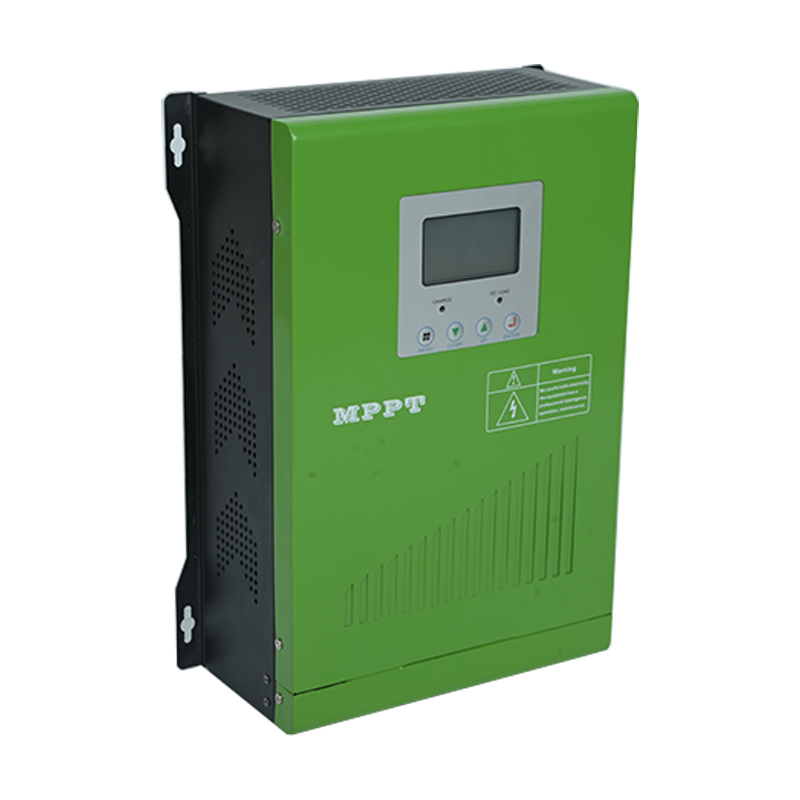

MPPT (Mosfet)

Product Features

Wide voltage range of PV input

Three-stage charging technology

Floating charge voltage settings

Auto recognition 12Vdc/24Vdc/48Vdc

DSP control technology with high efficiency

Intelligent max power point tracking technology

Protection: Short circuit protection, Over-current protection, Anti-reverse connection for PV and batteries

Request A Quote

Product Applications

Product Spec

PDF Download

An MPPT, or maximum power point tracker is an electronic DC to DC converter that optimizes the match between the solar array (PV panels), and the battery bank or utility grid. To put it simply, they convert a higher voltage DC output from solar panels down to the lower voltage needed to charge batteries.

Installation sites

MPPT(mosfet) wiring diagram.jpg

LED+LCD display
Battery volatge	12/24/48/96/192/220/240vdc
Charging current	30/40/50/60/100/120A
Max PV input	230Voc
Max efficiency	98%

MPPT(mosfet) Specs.jpg

Mosfet MPPT.pdf
